Top Jamb Door Closer Pull Side

With this mounting type the closer is mounted on the door and the arm is perpendicular to the frame.

Top jamb door closer pull side. Regular arm door closers allow doors to travel up to 180 degrees. The pull side mount 18 lcn 4040xp drop plate can be used with the following parts series. Closer accessories door closers operators lcn lcn 4040xp door closers tags. Closer mounts top jamb push side only.

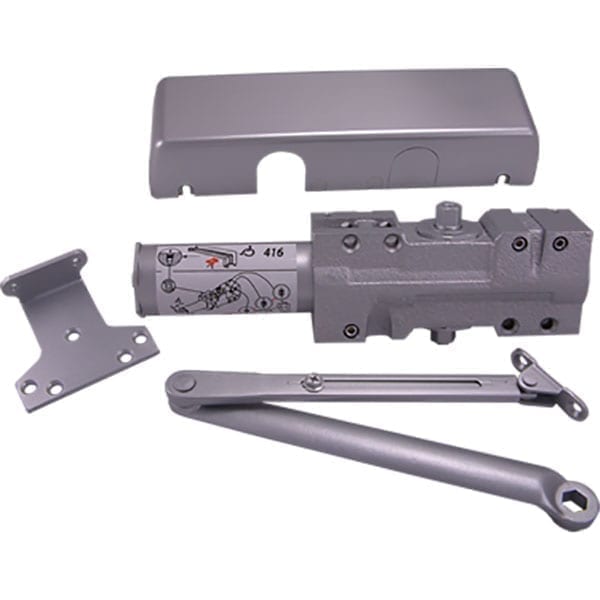

Our best selling tri packed door closer. Lcn 4026 heavy duty door closer with regular arm. Cast iron forged steel arm double heat treated steel pinion all weather fluid lcnfastpower adjust fast accurate installation. 4040xp 18 4040 18 1460 18 4010 18 and 1260 18.

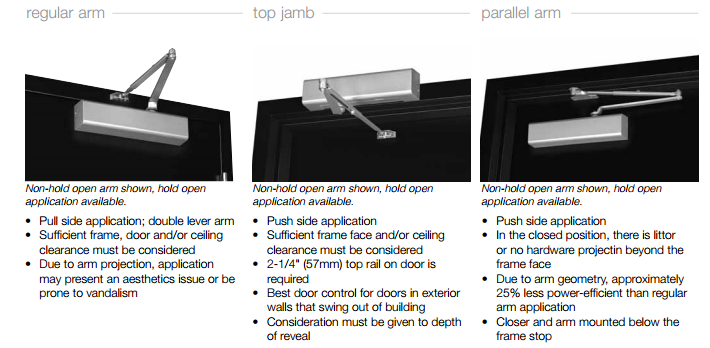

With the closer body mounted to the face of the frame head and arm attached to the face of the door it is somewhat more aesthetically pleasing than installing the closer body on the face of the door with a mounting plate. Rapidor tm installation system proprietary lcn division schlage lock company secure bracket and forearm with fasteners provided. The closer can be mounted in three different ways hinge side mount pull side the closer is mounted on the pull side of the door with the arm attached to the frame above top jamb push the door closer is mounted on the push side but mounted on the frame with the arm attached to the face of the door or parallel arm push this is where the. 4040xp 18 4040xp 18 689 4040xp 18 690 689 aluminum 695 dark bronze allegion door closer mounting plates drop plate drop plate for pull side top.

Door closers with regular arms are usually mounted on the pull side of the door where the closer body is mounted to the face of the door and the closer arm is attached to the face of the frame at the head. A tri packed door closer is packaged with all the hardware for all 3 mounting methods. This plate will make it so that a closer can be properly installed on narrow stile doors. I want to install a new over head door closer and i m not sure what method to use.

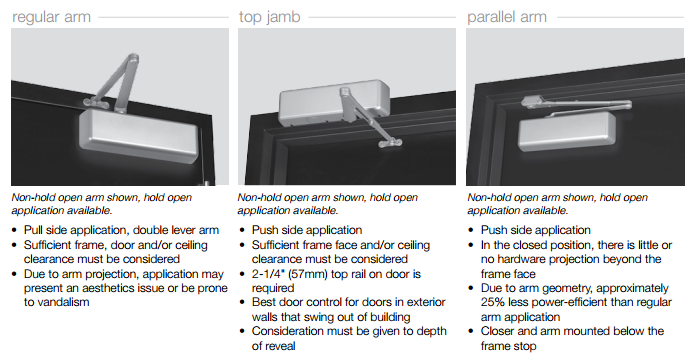

A regular arm closer is mounted on the pull side of the door. Top jamb mounted closers are used where the top rail of the door is narrow and the closer needs to be installed on the push side of the opening. How to install a door closer top jamb installation video by tell manufacturing inc. Over head door closers can be installed in 3 methods regular arm standard top jamb or parallel arm mounted.

The 18 lcn 4040xp drop plate for pull side mounting should be installed to the hinge or pull side of a door. Powder coat closer mounting. Non sized cylinder 4026 for interior doors 42 to 48 and exterior doors 54 to 60. Secure closer to door with.

Pull side mount top jamb mount pull side mount 1461 peel n stick installation instructions 1 2 61 n m maximum 45 ft lbs opening torque 0 0 mm 6 5 3 4 patents pending include. An application specific closer is designed for use in a specific mounting configuration either parallel arm like the lcn 4110 series top jamb the lcn 4020 series or.
